3.5KW/4.5KW/5.5KW
Aesthetic design.
Glass finish body.
Digital display.
In built Leakage protection device.
Sensor fault protection.
| Specification |
|---|
| Rated Voltage | AC 220V / 50Hz |
|---|---|
| Highest Temperature Setting | 52-55℃ |
| Operating Water Pressure | 0.02~0.6MPa |
| Water Proof Degree | IPX4 |
| Rated Pressure | 0.6MPa |
| Protection Against Electric Shock | Class 1 |
| Over Temp Protection | 55℃ |
| Pipe Connection | 1/2” BSP |
|---|---|
| Earth Leakage Circuit Breaker | 40A |
| Dry Heat Protection | When Temp Achieves 85-93 |
| Lowest Water Flow Range | 0.92/Min |
| Phase | Single |
| Relative Humidity | Above 95% (Indoor Temperature 25℃) |
| Using Environment Temp | 0-50℃ |
| MODEL | 3.5kW | 4.5kW | 5.5kW |
|---|---|---|---|
| Rated Power (W) | 3500 | 4500 | 5500 |
| Current (A) | 16 | 20 | 25 |
| Wire Gauge (mm²) | 3×2.5 | 3×2.5 | 3×4 |
| Dimensions (mm) | 203×137×53 | 203×137×53 | 397×257×65 |
| Weight (Kg) | 1.64 | 1.64 | 3.96 |

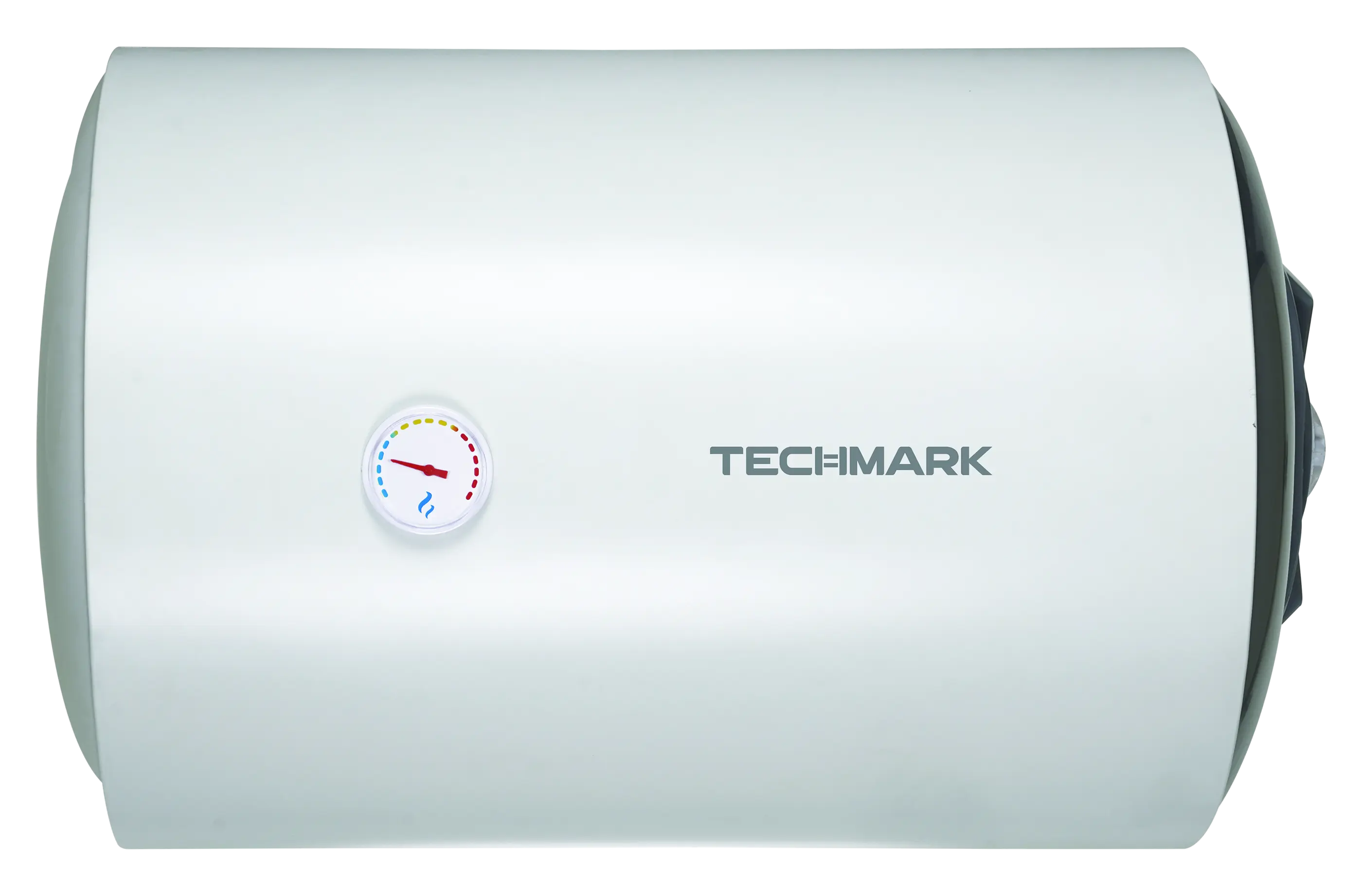

50L / 80L / 100L
Anti corrosive vitreous Enamel coated tank.
Long Life magnesium anode
Rust free Pre coated body.
Efficient thermal insulation.
Three levels of safety
(Thermostat, cut out & multi function safety Valve)
| Specification |
|---|
| Heating Power | 1.2/1.5W |
|---|---|
| Heating Element | Copper |
| Control Type | Manual |
| Rated Current | 5.22 Amp |
| Star Rating | 5 Star |
| Control | Combistar 280mm |
| Outer Body | Metal Body |
|---|---|
| Top and Bottom | Plastic (PP) |
| Safety Valve Pressure | 8 BAR |
| Knob | Yes |
| MG Anode Rod | Yes |
| Tank Capacity | 50L | 80L | 100L |
|---|---|---|---|
| Heating Time ∆ 200C | 48 min | 1h 17m | 1h 36m |
| Product Size (mm) (DxH) (Vertical) | 496×615 | 496×860 | 496×1014 |
| Product Size (mm) (DxB) (Horizontal) | 496×615 | 496×860 | 496×1014 |
| Tank Diameter (mm) | 405 | 405 | 405 |
| Product Net Weight (Kg.) | 16 | 22 | 25 |
| Container Load 40ft (HC) | 336 | 252 | 214 |

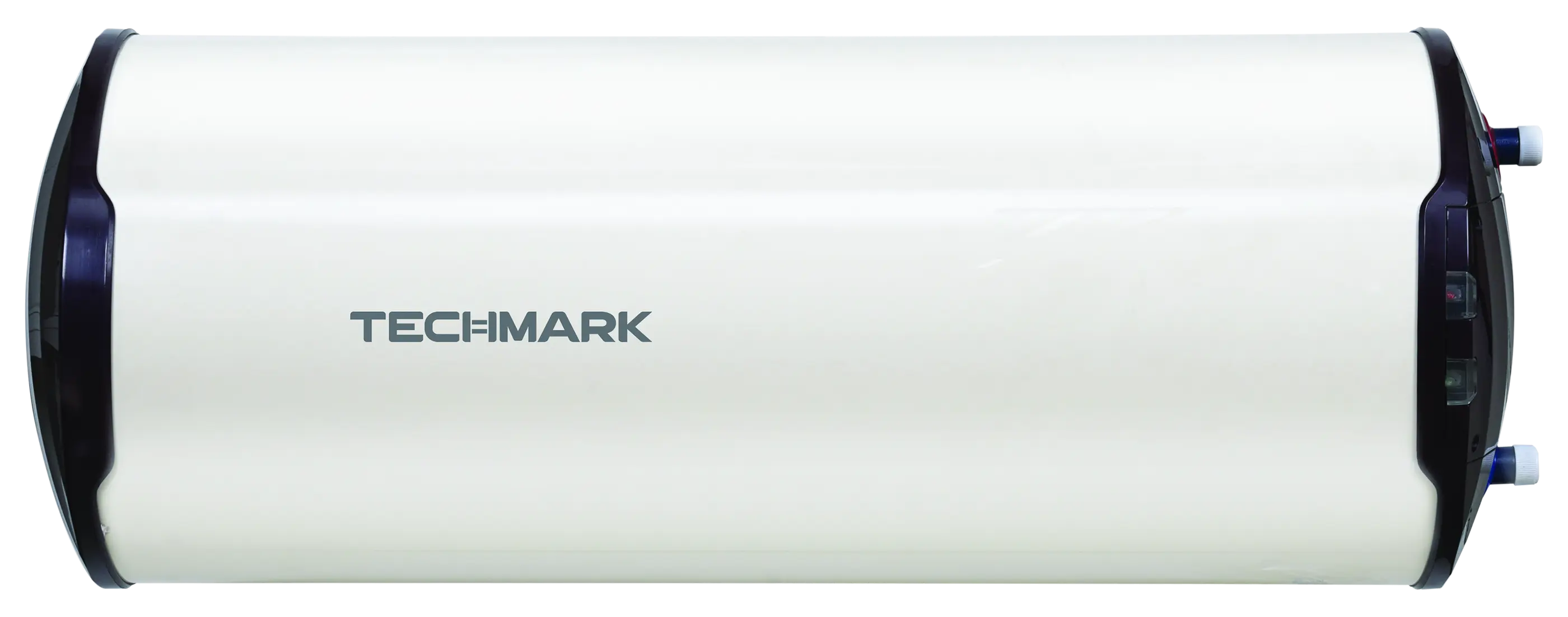

10L / 15L / 25L
Anti corrosive vitreous Enamel coated tank.
Long Life Magnesium anode
Rust free Pre coated body.
Efficient thermal insulation.
Three levels of safety (Thermostat, cut out & multi function safety Valve)
| Specification |
|---|
| Heating Power | 2 W |
|---|---|
| Heating Element | Copper |
| Control Type | Manual |
| Rated Current | 5.22 Amp |
| Star Rating | 3 Star / 5 Star |
| Control | Capillary Thermostat /Cut out |
| Outer Body | Metal Body / HIPS |
|---|---|
| Top and Bottom | Plastic (PP) / HIPS |
| Safety Valve Pressure | 8 BAR |
| Knob | Yes |
| MG Anode Rod | Yes |
| Tank Capacity | 10L | 15L | 25L |
|---|---|---|---|
| Heating Time ∆ 200C | 20 min | 30 min | 1h 36m |
| Product Size (mm) (DxH) (Vertical) | 323×440 | 323×550 | 368×601 |
| Product Size (mm) (DxB) (Horizontal) | 320×487 | 320×607 | 320×870 |
| Tank Diameter (mm) (Vertical) | 260 | 260 | 306 |
| Tank Diameter (mm) (Horizontal) | 225 | 225 | 225 |
| Product Net Weight (Kg.) (Vertical) | 8.8 | 10.4 | 13.12 |
| Product Net Weight (Kg.) (Horizontal) | 8.8 | 9.23 | 13 |
| Container Load 40ft (HC) | 960 | 768 | 560 |

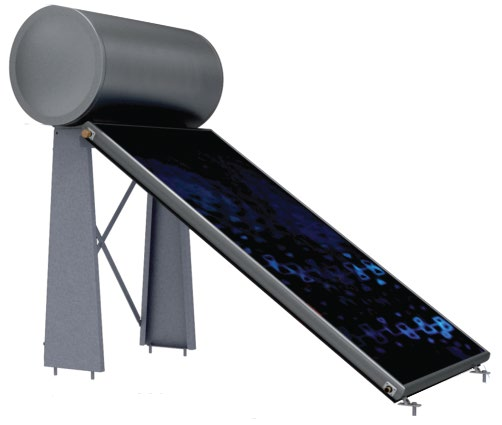

ATLAS 120L / 150L / 160L 160L-H / 160L-D / 200L 200L-E / 300L 300-L
Anti corrosive vitreous Enamel coated tank.
Double Coating of Liquid Enamel at 860°C
Unmatched Performance with Copper Selective Collectors
5-Year Warranty
8 Bar Pressure Resistant
| TYPE | A | B | TOTAL | C | D | E | F | G | H | I |
|---|---|---|---|---|---|---|---|---|---|---|
| 120 | 50 | 100 | 113 | 100 | 150 | 7.5 | 160 | 89 | 89 | 148 |
| 150 | 50 | 120 | 132 | 97 | 197 | 7.5 | 193 | 89 | 89 | 190 |
| 160 | 58 | 100 | 113 | 117 | 197 | 7.5 | 193 | 89 | 89 | 190 |
| 160 – H | 58 | 100 | 113 | 197 | 117 | 7.5 | 158 | 89 | 89 | 110 |
| 160 – D | 58 | 100 | 113 | 208 | 157 | 7.5 | 168 | 89 | 180 | 148 |
| 200 | 58 | 120 | 132 | 208 | 157 | 7.5 | 168 | 89 | 180 | 148 |
| 200 – E | 58 | 120 | 132 | 117 | 197 | 7.5 | 193 | 89 | 89 | 190 |
| 300 | 58 | 170 | 183 | 200 | 197 | 7.5 | 193 | 89 | 180 | 190 |
| 300 – L | 58 | 170 | 183 | 240 | 197 | 7.5 | 193 | 89 | 180 | 190 |
30L/ 50L/ 80L/ 100L
Anti corrosive vitreous Enamel coated tank.
Double Coating of Liquid Enamel at 860°C
Unmatched Performance with Copper Selective Collectors
5-Year Warranty
8 Bar Pressure Resistant
| Product Specifications | |
|---|---|
| Heating Power | 1.5kW |
| Heating Element | Copper |
| Control Type | Manual |
| Rated Current | 6.5 Amp |
| Star Rating | 5 Star |
| Control | Combistat 280mm |
| Outer Body | Metal Body |
| Top and Bottom | Plastic (PP) |
| Safety Valve Pressure | 8 BAR |
| Knob | Yes |
| MG Anode Rod | Yes |
| Tank Capacity | 50L | 80L | 100L |
|---|---|---|---|
| Heating Time ΔT 45ºC | 110 min | 175 min | 240 min |
| Product Size (mm) | 450×600 | 450×810 | 450×1010 |
| Tank Diameter (mm) | 405 | 405 | 405 |
| Product Net Weight (Kg.) | 17.8 | 23 | 28.5 |
| Container Load 40ft (HC) | 384 | 288 | 240 |
