led lighting

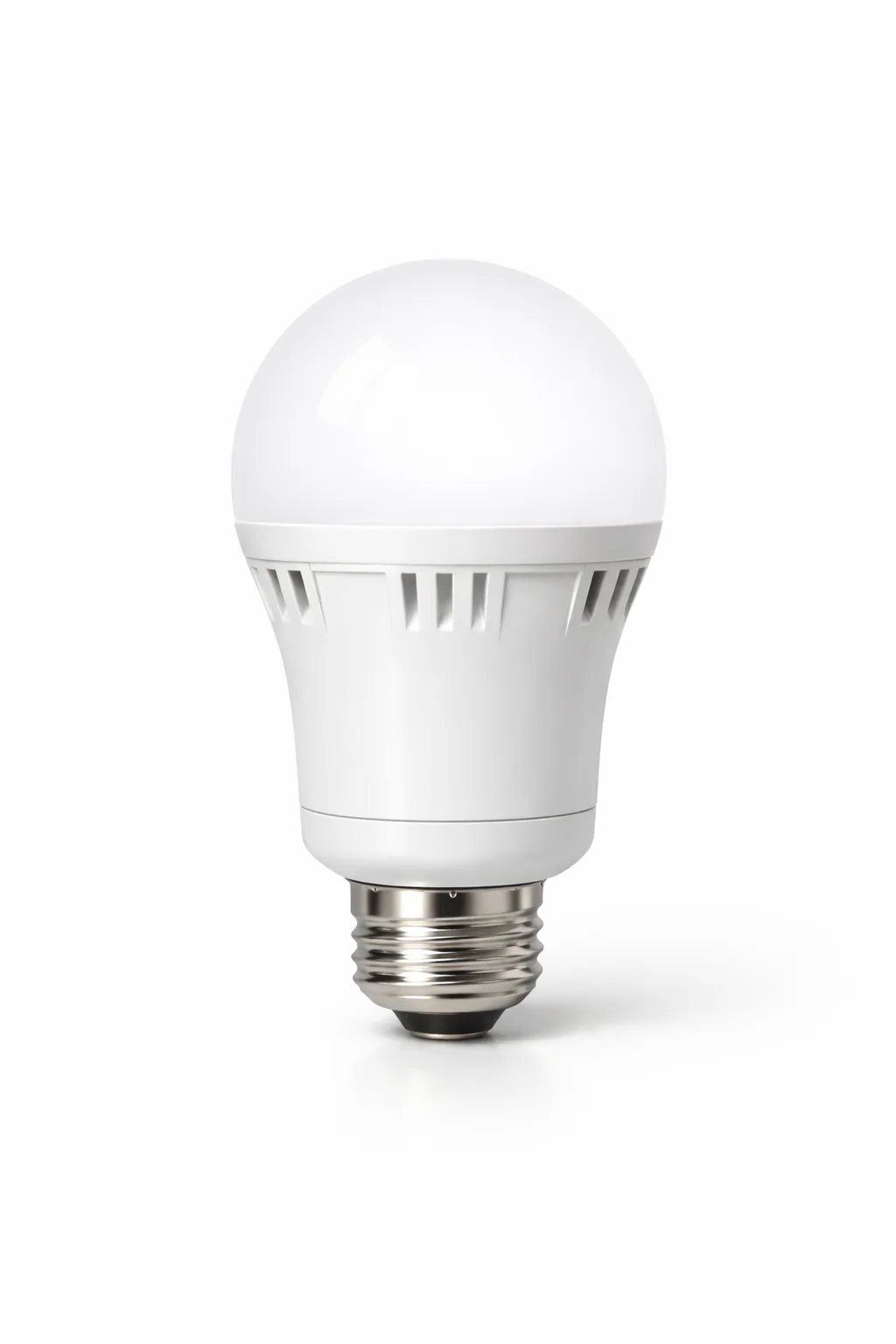

LED EMERGENCY LAMP

7W / 9W / 12W

Light Up automatically in the absence of power supply

UV Light Resistant

Zero mercury (Hg) product

Non dimmable

Instant Bright Light

No addition switch to be operated

Read more specifications...
Parameter Specification
MOL MOW MOH Units
MOL 123 125 125 mm
MOD 63 65 65 mm
Lamp Base B-22 Aluminium
Weight 145 150 155 gms
Print Details if any Ref: Buyer's Spec
Parameter Conditions 7W 9W 12W
Voltage @ 50Hz (Vrms) Nominal and +/- variations 110 - 270
Working Temprature Range (℃) 5-45
Starting Time (Sec) Cold Start < 1
Initial Lumen Output (2700/6500K) Lm Vertical position, nominal line 700 900 1200
Input Wattage (W) Vertical position, nominal line 7W(±10%) 9W(±10%) 12W(±10%)
Input Current (Running) (A) Vertical position, nominal line 0.035 0.045 0.055
Power Factor > 0.9 > 0.9 > 0.9
Harmonics (%) < 20 < 20 < 20
Surge Protection (kV) >2.5 >2.5 >2.5
Ingress Protection IP20 IP20 IP20
CRI Vertical position, nominal Voltage >80 >80 >80
CCT Vertical position, nominal Voltage 6500 (±500)
Efficiency (lm/W) 90-100
On DC for 7W/9W and 12W
Input / Output Product Ratings at : 25º+/-2ºC, RH < 65% Specification
Battery Capacity (mAh) Nominal and +/- variations 1800 2000 2200
Battery Charging Time (Hrs) 10.5 11 11.5
Back Up up to (Mins) 120 150 180
Starting Time (Sec) Cold Start < 1
Initial Lumen Output (Lm) 300 325 350
Ingress Protection IP20
CRI >80
CCT (K) 6000 6500 7000
Regulatory Standards Parameter Reference Document Other Compliance if any Product Marking(print)
Operating Voltage(V) Nominal Voltage in AC 120 230 300
Equivalency (W) W Incandescent 90
Paking Details Material and size Printing
Single Piece As per Buyer's layout Design As per Buyer's Layout Design
20 pieces Master Box As per Buyer's Layout Design
Label on Master Box Printed on Master Box As Buyer's Layout Design
led lighting

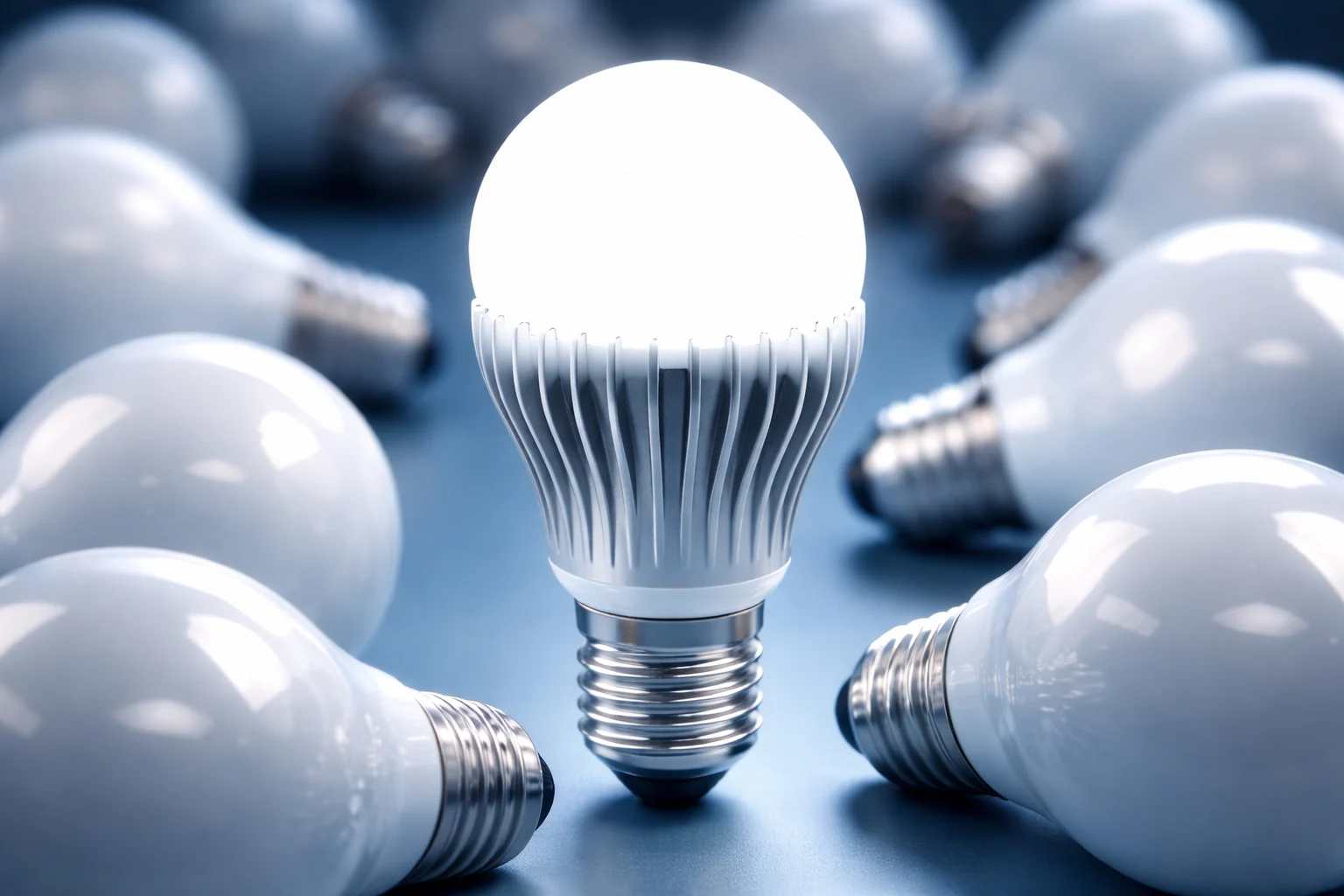

LED BULBS

3W / 5W / 7W / 9W / 12W / 15W

No UV effect

Instant bright light

QR code implemented for each bulb

Ultra bright

Energy savings

Long life

Zero mercury (Hg) product

No dimmable

Read more specifications...
Item Code Lamp Wattage Product Parameters
White Yellow MOD Ø MOL Weight Current Lumen
6500K 3000K 3W 50 mm 90 mm 35 gm 13 mA 300
6500K 3000K 5W 57 mm 103 mm 39 gm 20 mA 500
6500K 3000K 7W 57 mm 110 mm 50 gm 30 mA 700 700
6500K 3000K 7W 9W 60 mm 118 mm 360 gm 40 mA 900
6500K 3000K 12W 65 mm 122 mm 85 gm 52 mA 1150
6500K 3000K 15W 65 mm 122 mm 95 gm 60 mA 1425
Parameter Conditions MIN NOM MAX
Voltage @ 50Hz (Vrms) Nominal and +/- variations 100 230 440
Working Temperature Range (℃) -10 25 50
Working Humidity Range (℃) -10 25 90
Starting Time (Sec) Cold Start
Parameter Conditions -10º + 50ºC
CRI 80 80 81
Power Factor (C) 0.9 0.9 0.95
Total Harmonics (%) 25% < 30 < 30
Surge Protection (kV) 2.5 3.5 4
Ingress Protection (IS-16102) IP65
Colour Temp (0K) Cool Day Light 6000 6500 6700
Colour Temp (0K) Natural Day Light 2800 3000 3200
Colour Temp (0K) Warm Day Light 2800 3000 3200
Beam Angle 240° 240° 240°
led lighting
STEP DOWNLIGHT PANELS

5W / 10W / 15W /20W / 24W

No UV effect

Instant bright light

Long lifetime with 50,000 hrs L70B50 at Ta 25⁰C

Ultra bright

Energy savings

Long life

Zero mercury (Hg) product

No dimmable

Read more specifications...
Lamp Wattage Product Parameters (6500K)
Cutout Round (mm) Cutout Square (mm) Height (mm) Elec. Driver Lumen
5W 108 108×108 25 Non Isolated / Isolated 400
10W 132 132×132 25 Non Isolated / Isolated 800
15W 156 156×156 25 Non Isolated / Isolated 1050
20W 177 177×177 25 Non Isolated / Isolated 1400
24W 204 204×204 25 Non Isolated / Isolated 1680
Parameter Conditions MIN NOM MAX
Voltage @ 50Hz (Vrms) Nominal and +/- variations 100 230 380
Working Temperature Range (℃) 10 25 50
Starting Time (Sec) Cold Start < 1
Parameter Conditions -10º + 50ºC
CRI 80 80 81
Power Factor 0.91 0.95 0.97
Total Harmonics (%) < 30
Surge Protection (kV) 2 2.5 2.5
Ingress Protection (IS-16102) IP20
Colour Temp (0K) Cool Day Light 6000 6500 7000
Colour Temp (0K) Natural Day Light 3500 4000 4500
Colour Temp (0K) Warm Day Light 2800 3000 3500
led lighting
LED BACKLIT PANEL

36W

Efficacy up to 110lm/W

TP(a) rated thermoplastic diffuser as an option

Long lifetime with 50,000 hrs L70B50 at Ta 25⁰C

Operating temperature from -30⁰C to +45⁰C

IP40 rated

Easy plug & play connector

Loop through adaptor enhance ease of installation

Read more specifications...
Lamp Wattage Product Parameters (6500K)
Cutout Square (mm) Height (mm) Elec. Driver Lumen
36W 600×600 8 Non Isolated / Isolated 3600
Parameter Conditions
Voltage @ 50/60Hz (Vrms) 220-240 VAC
Working Temperature Range (℃) -30 to +40 °C
Starting Time (Sec) Cold Start
Parameter Conditions -10º + 50ºC
CRI Ra80
Power Factor > 0.9
Total Harmonics (%) < 30
Surge Protection (kV) 1000
Ingress Protection (IS-16102) IP20/IP40
Colour Temp (0K) 6500 K
Beam Angle 110°
led lighting
STREET LIGHT

15W / 25W / 45W

No UV effect

Instant bright light

QR code implemented for each bulb

Ultra bright

Energy savings

Long life

Zero mercury (Hg) product

No dimmable

Read more specifications...
White Lamp Wattage Product Parameters
Length Width Height Weight Current Lumen
6500K 15W 80 mm 70 mm 225 mm 650 gram 75 mA 1350
6500K 25W 80 mm 70 mm 325 mm 780 gram 125 mA 2250
6500K 45W 80 mm 70 mm 325 mm 780 gram 23 mA 4050
Parameter Conditions MIN NOM MAX
Voltage @ 50Hz (Vrms) Nominal and +/- variations 100 230 380
Working Temperature Range (℃) -10 25 50
Working Humidity Range (℃) -10 25 90
Starting Time (Sec) Cold Start < 1
Parameter Conditions -10º + 50ºC
CRI 80 80 81
Power Factor (C) 0.9 0.9 0.95
Total Harmonics (%) 25% < 30 < 30
Surge Protection (kV) 2.5 3.5 4
Ingress Protection (IS-16102) IP65
Colour Temp (0K) Cool Day Light 6000 6500 6700
Colour Temp (0K) Natural Day Light 2800 3000 3200
Colour Temp (0K) Warm Day Light 2800 3000 3200
Beam Angle 240° 240° 240°
