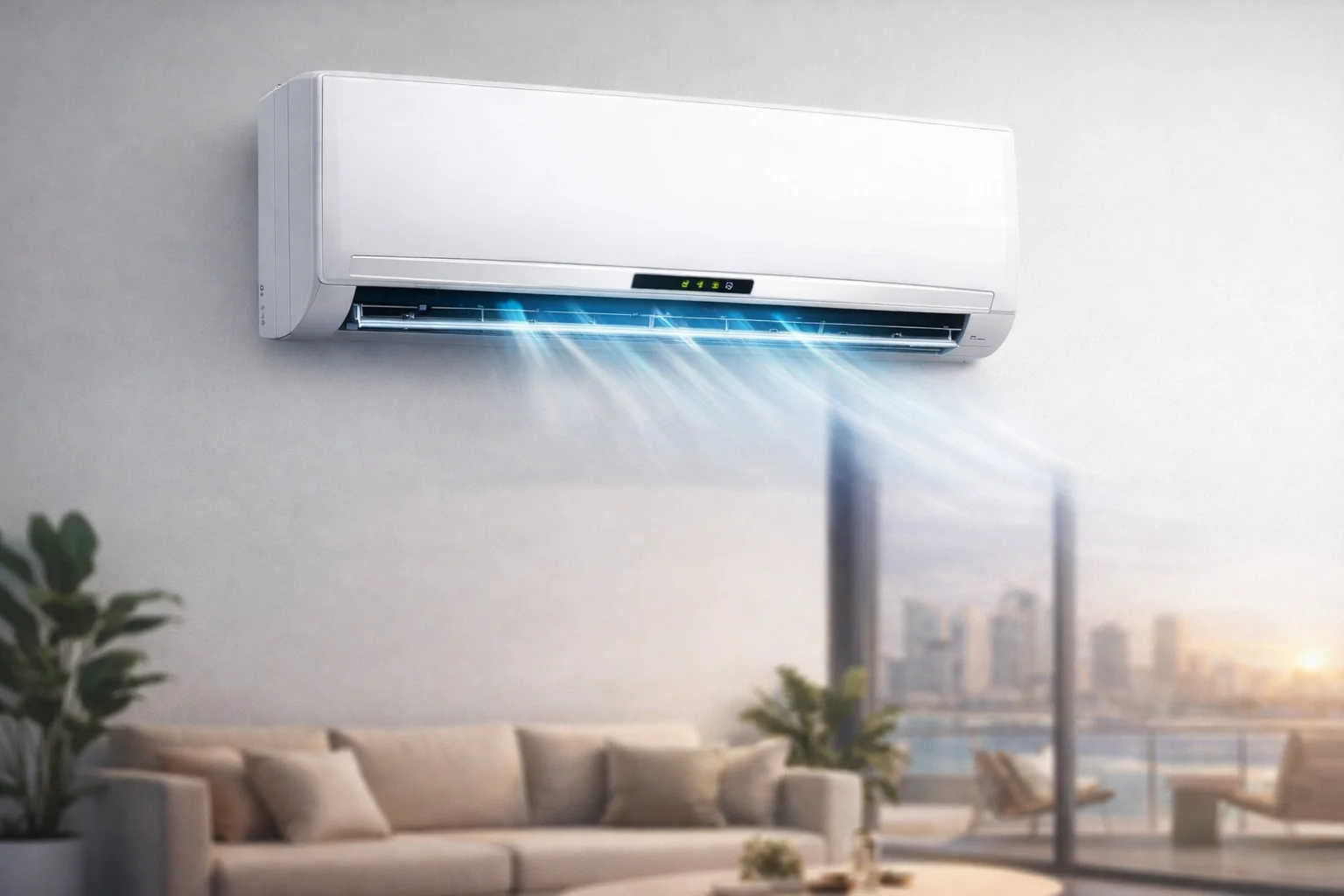

AIR CONDITIONER

18000 / 24000 / 30000 BTU

High Ambient Cooling

Efficient even in extreme Hot Condition

Active Dehumidifier

To provide extra comfort.

Anti Microbial Air Filter

actively purifying and delivering fresh air

100% Copper Blue Fin

Condenser and Evaporator.

Eco Friendly Refrigerant

to reduce the Carbon Footprint

Read more specifications...

Models	Split 18K	Split 24K	Split 30K
Rated Voltage (Ph-V-Hz)	1Ph, 230V, 50Hz	1Ph, 230V, 50Hz	1Ph, 230V, 50Hz
Model Rating Category (Btu/Hr)	18000	24000	30000
Rated Cooling Capacity T1/T3 (Btu/Hr/W)	16500/14000	22500/18000
Performance – T1 Conditions
Actual Power	11495	2410	3100
Actual Capacity	5017	6008	8040
Current	6.64	11.29	15.27
Power Factor	0.98	0.93	0.90
EER	3.35	2.49	2.57
Airflow Rate – Rated	930	950	1450
Airflow Rate – Actual	884	908	1390
Sound Level	47	47	50
Performance – T3 Conditions
Actual Power	1745	2660	3357
Actual Capacity	4186	5069	6600
Current	7.75	12.3	16.21
Power Factor	0.98	0.94	0.90
EER	1.90	1.90	1.96
Airflow Rate – Rated	930	950	1450
Airflow Rate – Actual	919	963	1355
Net Dimensions – IDU (mm)	840×280×195	958×315×235	1100×330×250
Net Dimensions – ODU (mm)	830×560×300	900×700×360	900×700×360
Net Weight – IDU (Kg)	9.5/11.5	13/15.5	13.5/17.5
Net Weight – ODU (Kg)	52/57	54/57.5	59.5/63.8
Pipe Connection	1/4", 1/2"	1/4", 5/8"	3/9", 5/8"
Operational Range (°C)	16~30	16~30	16~30
Refrigerant	R410a,940	R22,1250	R22,1500
Compressor	ASF180V1SKP	CR-32K6M	CR-34K6M
